QuadraLED™ Securalock

QuadraLED-Securalock-Slide
QuadraLED-Magnalock-Slide-Top3
QuadraLED-Securalock-Slide1

Product Details

Product Family: QuadraLED™ Series

Product Type: Grid Ceiling Light Replacement

Warranty: 5 Years

Main Features

  • Toughened security glass
  • Easy maintenance, Securalock™ cover
  • 5 Year warranty
  • Recessed or surface mounted
  • IP65 Rated
  • Multiple modules
  • Optional dimming, 1-10v, DALI and various other control options

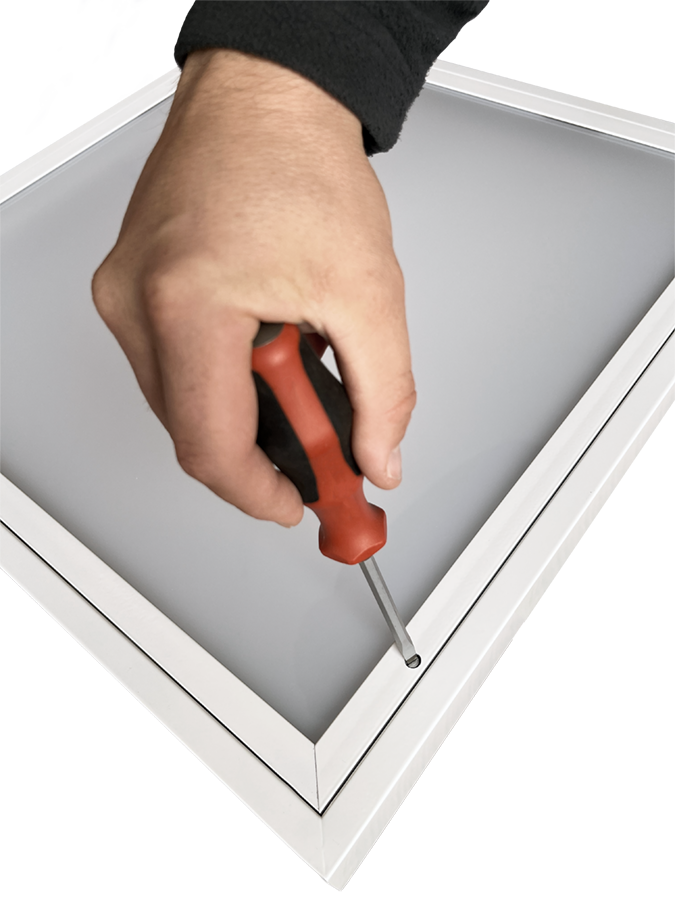

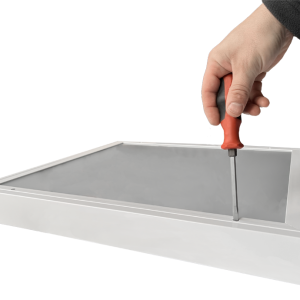

Securalock™ Easy Maintenance

Securalock™ – Twist and lock. Simple to use locking system, secures the toughened
glass cover of the luminaire for easy maintenance access and inspection.

Multiple Modules

Multiple modules for easy replacement and upgrades. High CRI >90 to reveal the true colours of surroundings. Excellent 105lm/w with full control options of DALI, 1-10v as specified or required.

Easy Maintenance

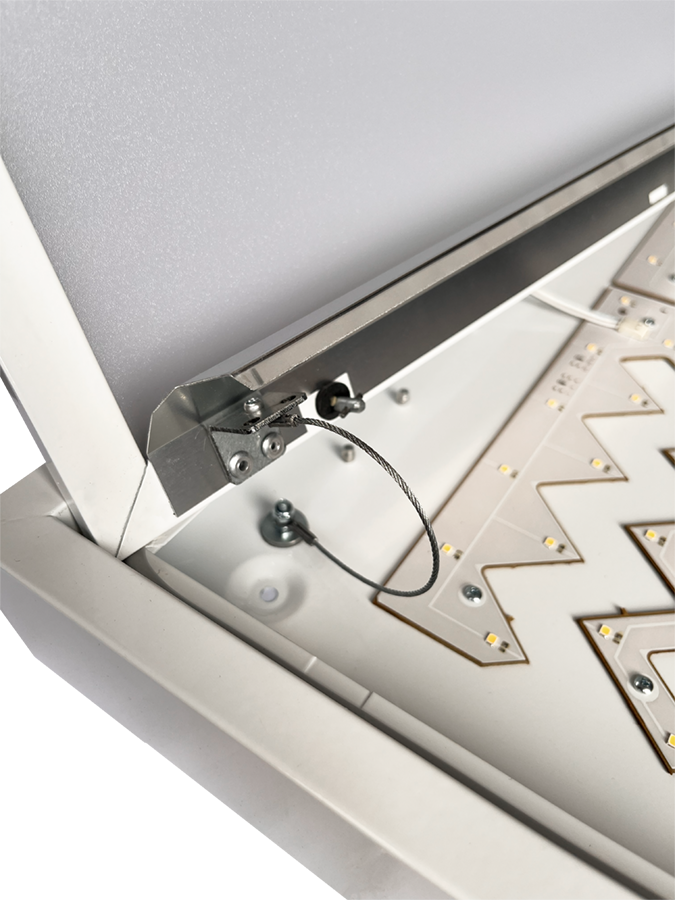

Toughened security glass tightly sealed to IP65, safety cables inside for easy maintenance and inspection. Securalock™ locking technology for easy maintenance.

Sealed to IP65

High quality precision seal and fitting standard or security fasteners to your specification. Toughened security glass tightly sealed to IP65.

Multiple modules for easy replacement and upgrades

Product Features

Uniform illuminating surface

The QuadraLED™’s toughened frosted security glass creates a uniform illuminating surface with no visible LED spots.

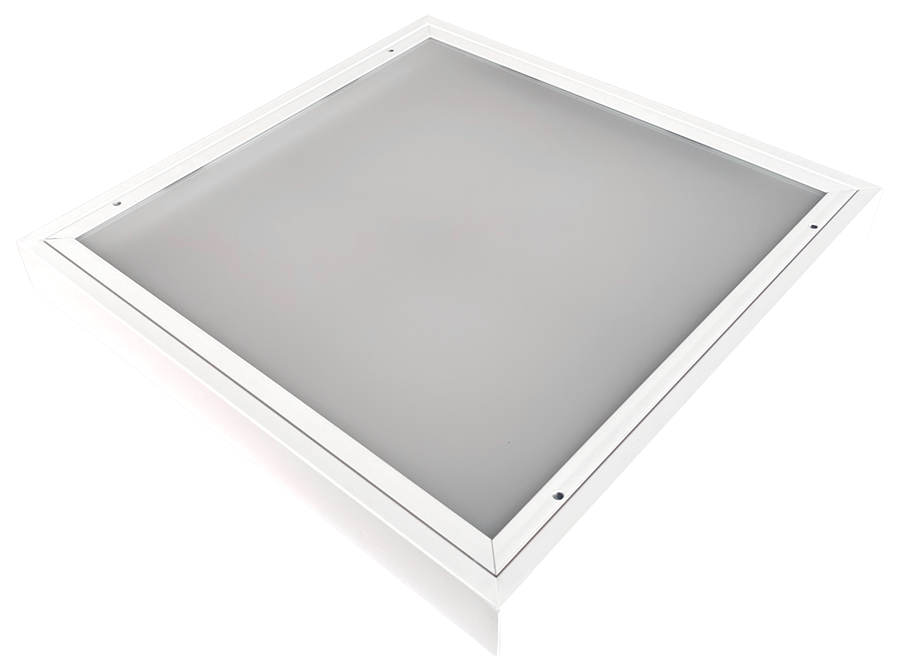

Recessed or surface mounted

The QuadraLED™ is available both recessed mounted and surface mounted in 600mm x 600mm as standard or 1200mm x 300mm.

Securalock™ Technology

Securalock™ – Twist and lock. Simple to use locking system, secures the toughened
glass cover of the luminaire for easy maintenance access and inspection.

IP65 Protection

IP65 rated with the tightly sealed glass housing cover, ensuring a lasting optical performance and preventing dust accumulation, reducing maintenance time and costs.

Multiple Modules

Multiple modules for easy replacement and upgrades. High CRI >90 to reveal the true colours of surroundings. Excellent 105lm/w with full control options of DALI, 1-10v as specified or required.

5 Year warranty

The QuadraLED™ comes with a 5 year warranty as standard.

Downloads

Application Areas

  • Lab and Research Centre
  • Hospitals, Clinics, NHS Healthcare
  • Clean Rooms
  • Areas Vulnerable to Ingress
  • Ticket Halls
